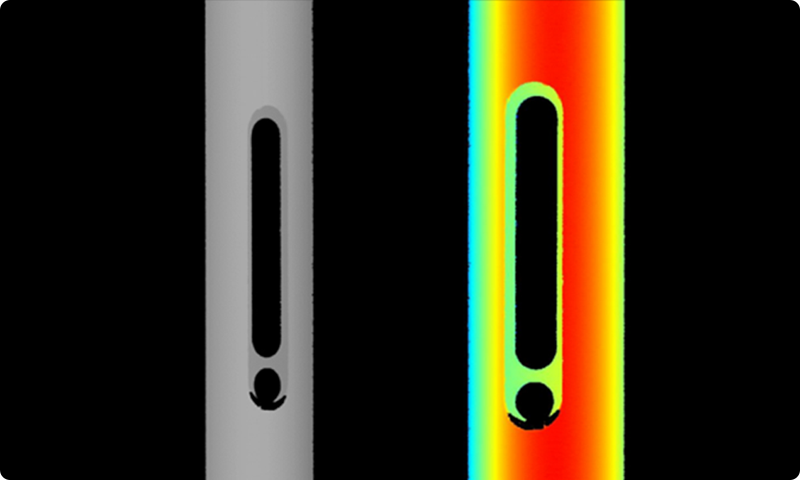

SIM card slot measurement for mobile phones

Measurement item: Card slot depth

Details

Measurement Item

Mobile phone SIM card slot depth measurement
Customer

An international famous mobile phone parts brand supplier
Work piece

Mobile phone components
Downstream industry

consumer electronics industry
Product Model

LVM2010
Technical Requirements

detect the depth from the highest point of the curve on the outer surface of the mobile phone to the inner plane of the SIM slot, accuracy requirement: repeatability 0.01mm, detection efficiency: 3s
Solution

Repeatability 0.2um in Z-direction, resolution 7-9um in X-direction, field of view 15-18mm, depth of field 10mm
Customer Value

able to meet customer requirements, high efficiency and stable detection of SIM card slot depth
