Background knowledge

In the highly competitive smartphone manufacturing industry, every component must meet strict quality standards to ensure excellent performance and customer satisfaction. Among them, the camera module is one of the most critical and complex components. Ensuring that the camera module is absolutely flat is critical to avoid image distortion and get clear, high-quality images.

Traditional detection methods often rely on manual visual inspection or low-precision measurement tools, which are not only time-consuming and laborious, but also prone to errors. In contrast, the automated detection of a 3D camera can greatly improve the detection efficiency and reliability. It can complete the detection of a large number of modules in a very short time, while ensuring the consistency and accuracy of the detection results.

Camera selection

Today for you to introduce the application of technology LVM2020 line laser 3D camera in 3C industry detection case!

The LVM 2020-line laser 3D camera of Next Vision Tech meets the requirements of various high-speed and mass detection applications; can provide 340Hz full-frame acquisition rate, physical contour is 2048 points, and the depth map uniform spacing samples up to 4096 points; LVM2020 with Z direction repeat precision accurate to 0.3 μ m, the proximal field range (FOV) is 27.5mm, the distal view range (FOV) is 33.5mm, providing the best target visible, is a cost-effective 3D intelligent sensor.

Mobile phone camera planarity detection

Workpiece information

· Size: 30mm * 22mm * 3mm (length, width and height)

· Material: Hardware

Test requirements

· Check the planarity of the front and negative

· Repeat accuracy requires 0.005mm

Detection environment and installation method

· Environment description: After the camera is fixed, the product is scanned in a straight line along the center

· Acquisition trigger mode: encoder trigger

· Communication: TCP / IP

Drawing effect

* Figure is a positive effect diagram

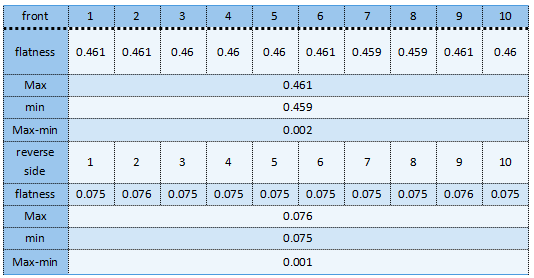

measured data

Test conclusion

· The LVM 2020-line laser 3D camera of Next vision tech can ensure the accuracy of the camera plane detection results and meet the detection requirements of 0.005mm repeat accuracy

· Test value: complete the test in a very short time to improve the production efficiency and ensure the accuracy of the test results
